Automatic Rotary Evaporator EZL-RE38

Automatic Rotary Evaporator EZL-RE38

Automatic Rotary Evaporator EZL-RE38 has a color digital display for monitoring and controlling rotation speed/temperature, as well as a motorized lift with a 230 mm elevating stroke length. It has a speed range of 10 to 110 rpm and allows for vertical lifting for precise positioning of glassware. The unique 50 L bath design with F125 mm opening flange heats up quickly, allowing for faster experiments. Bath is designed to be user-friendly while maintaining the highest level of safety and can reach temperatures of up to 399°C.

Catalog Buy Now

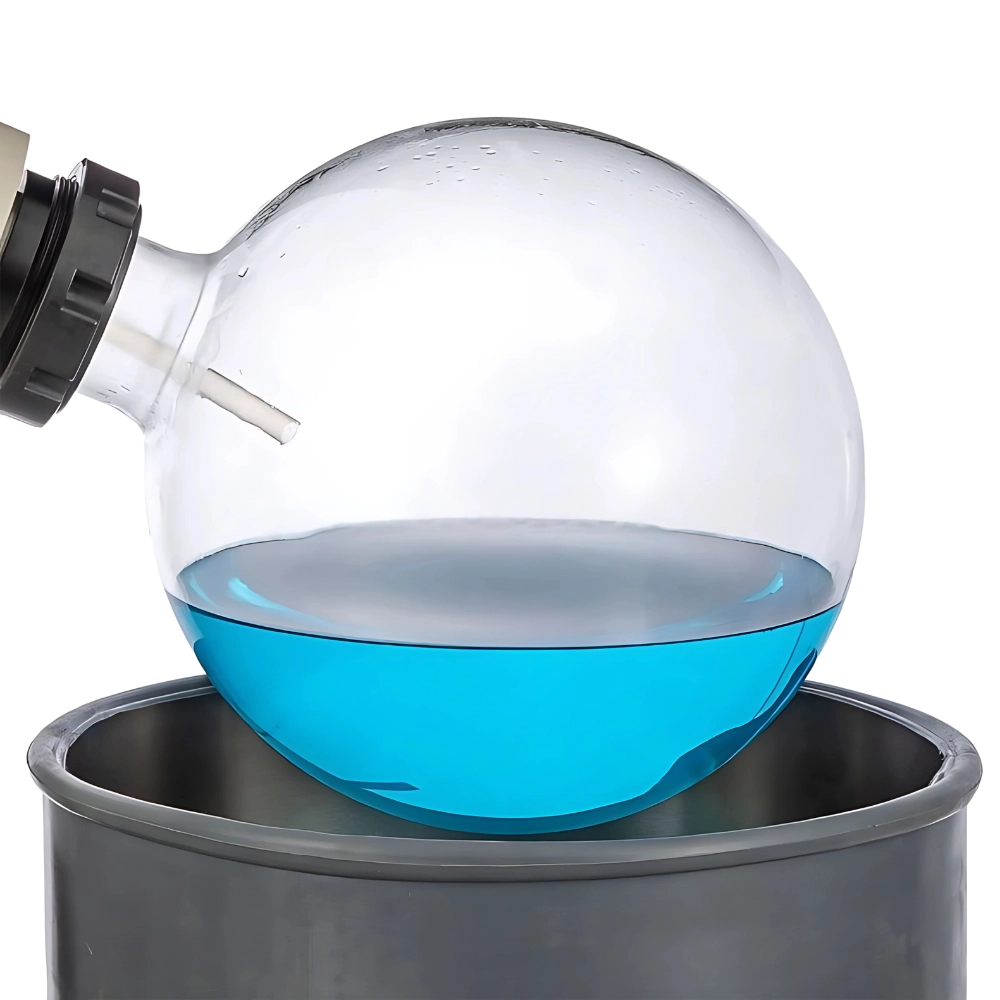

Rotary Bottle 50 L
Collecting Bottle 20 L
Rotary Speed 10 to 110 rpm
Opening Flange Diameter F125 mm
Achievable Vacuum 0.098 Mpa
Elevating Stroke 230 mm
Evaporating Capability Water : 9L/H Alcohol : 19L/H
Temperature Range 0 to 399°C
Temperature Accuracy ±1°C
Temperature Display LCD digital
Elevating Function Automatic elevating
Sealing Double sealing with Teflon (PTFE)
Rotary Motor Power 250 W
Power Supply 8.3 Kw
Rated Power Supply 380V, 50Hz
Dimension (L×W×H) 1320×770×2340 mm
  • Double sealing to ensure high vacuum degree
  • Main body is made up of aluminum alloy + stainless steel
  • All valves adopt latest integrated hand wheel valve
  • Microcomputer powered switch control
  • Borosilicate glass, which is resistant to high temperatures and corrosion

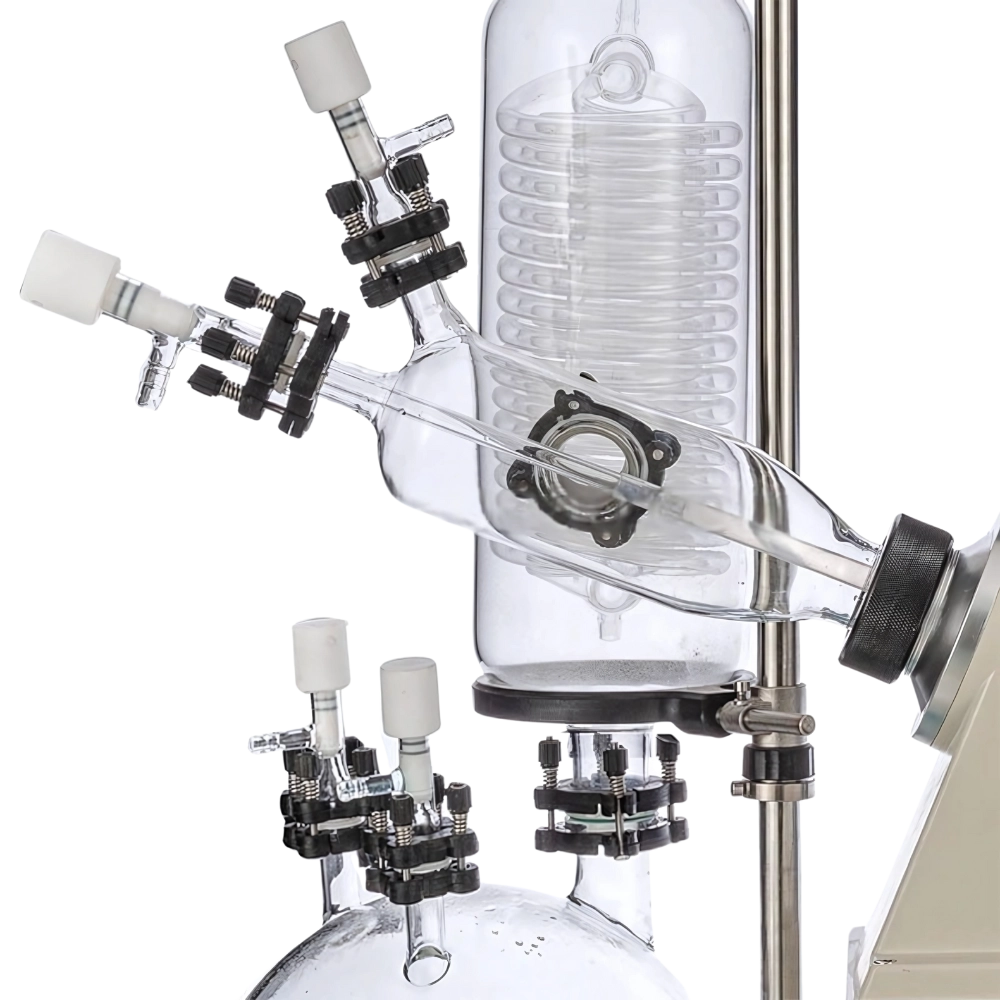

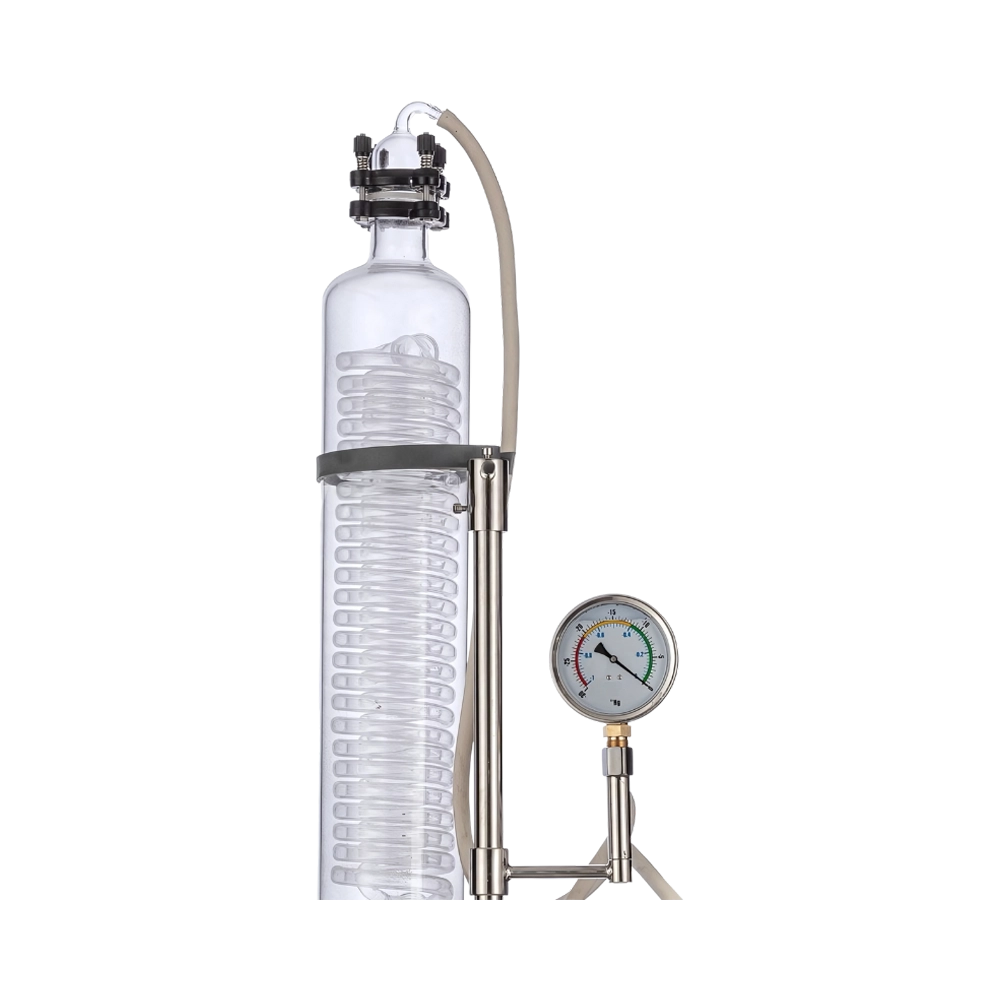

  • Up-right double layer serpentine coil condenser to ensure high recovery rate
  • Large LCD screen can display speed and temperature parameters at same time
  • Intelligent constant temperature control of the bath with PT100 sensor
  • Adopts high speed performance with single chip microcontroller
  • High rated condenser with exceptional cooling properties
  • Heats up quickly because of optimized bath volumes
  • Easy and jolt-free raising and lowering of rotary evaporator
  • Adjustable final position recognition to protect operator and sample against breaking
  • DC motor automatic motorized lift

It is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in research and production of medicine, chemical and biological products etc.

Automatic Rotary Evaporators

Ezilab Automatic Rotary Evaporators have large LCD screens for monitoring and controlling the speed and temperature. They adopt high-speed performance with single-chip microcontrollers to ensure efficient operation. Their optimized bath volumes increase the evaporation efficiency to reduce waiting time. The adjustable final position recognition protects the operator and sample from breaking. Our Automatic Rotary Evaporators have DC motors that provide automated lifting and lowering of the evaporator for user efficiency.

Ezilab Manual Rotary Evaporators are crafted with borosilicate glass to provide resistance to high temperatures and corrosion. The high-rated condenser efficiently condenses vapors to ensure maximum condensation. They have separate baths and mainframes to allow flexible configuration options. Their double-layer serpentine coil condenser maximizes the surface area to improve the efficiency of solvent recovery. Our Manual Rotary Evaporators have a smooth operation of lifting and moving to reduce the risk of sample loss or breakage.
