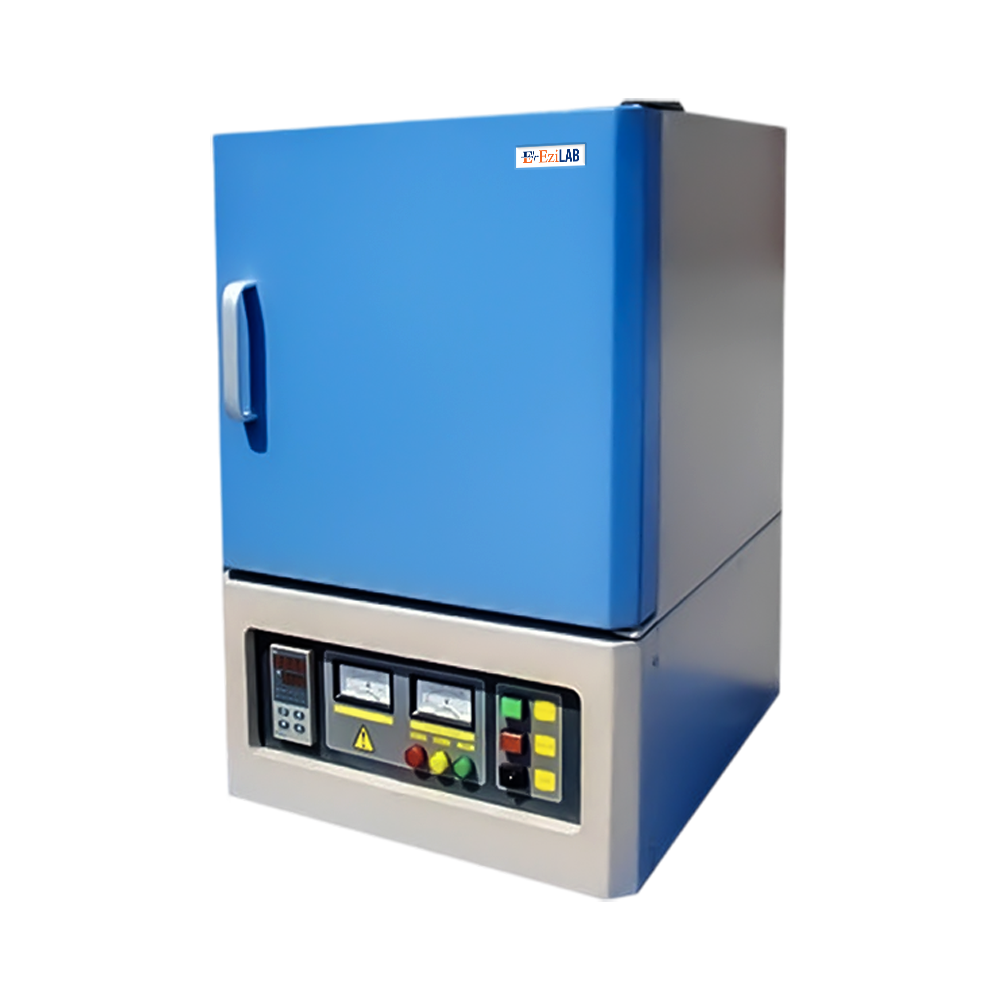

Muffle Furnace EZL-MF104
EZL-MF104

Muffle Furnace EZL-MF104

www.Ezilab.com | info@ezilab.com

Overview

The Muffle Furnace EZL-MF104 is a 36 L high-precision furnace with a solid ceramic chamber for hardening, loosening, normalizing, and other thermal processes up to 1200°C. It has a graded insulating system made of high purity ceramic fiber. The well-known digital PID controller gives you precise temperature control and makes this equipment simple to operate. It heats materials directly using the very effective heaters on all four sides of the chamber. This fantastic feature drastically reduces the time it takes for the temperature to rise. It has a one-of-a-kind safety feature to keep it from overheating and shorting out.

Specifications :
Capacity 36 L
Maximum Working Temperature 1200°C (<3 hours)
Continuous Working Temperature RT to 1100°C
Heating Rate Maximum Heating Rate: 20°C/min
Temperature Accuracy ±1°C
Thermocouple K type
Heating Element Resistance Wire
Temperature Control PID automatic control
Furnace Material Double layer steel casing
Display 7” colour touch screen
Rated Power 9 Kw
Working Voltage AC 380V, 50Hz
Chamber Dimension (W×D×H) 300×300×400 mm
Overall Dimension (W×D×H) 950×1400×870 mm
Net Weight 160 kg
Features :
  • -  Ceramic fiber furnace chamber to ensure fast heating rate and save power
  • -  Double layer steel casing with fan cooling assistance to ensure the surface temperature is below 50C
  • -  Intelligent sensor alarm function
  • -  Digital PID controller
  • -  Intuitive and easy to use operating menu
  • -  Easy to open door handles
  • -  Current temperature and setting temperature are displayed separately on control panel
  • -  Highly efficient fan motor ensures uniform air circulation
  • -  Excellent temperature accuracy
  • -  Simple to use and maintain
  • -  Over-temperature limit function
  • -  Less and low noise operation with gentle air currents
  • -  Vent hole on top is a perfect solution for waste gas during material sintering
Applications :

It is an ideal device for research labs and dental labs to prepare small size samples with maximum energy saving.
