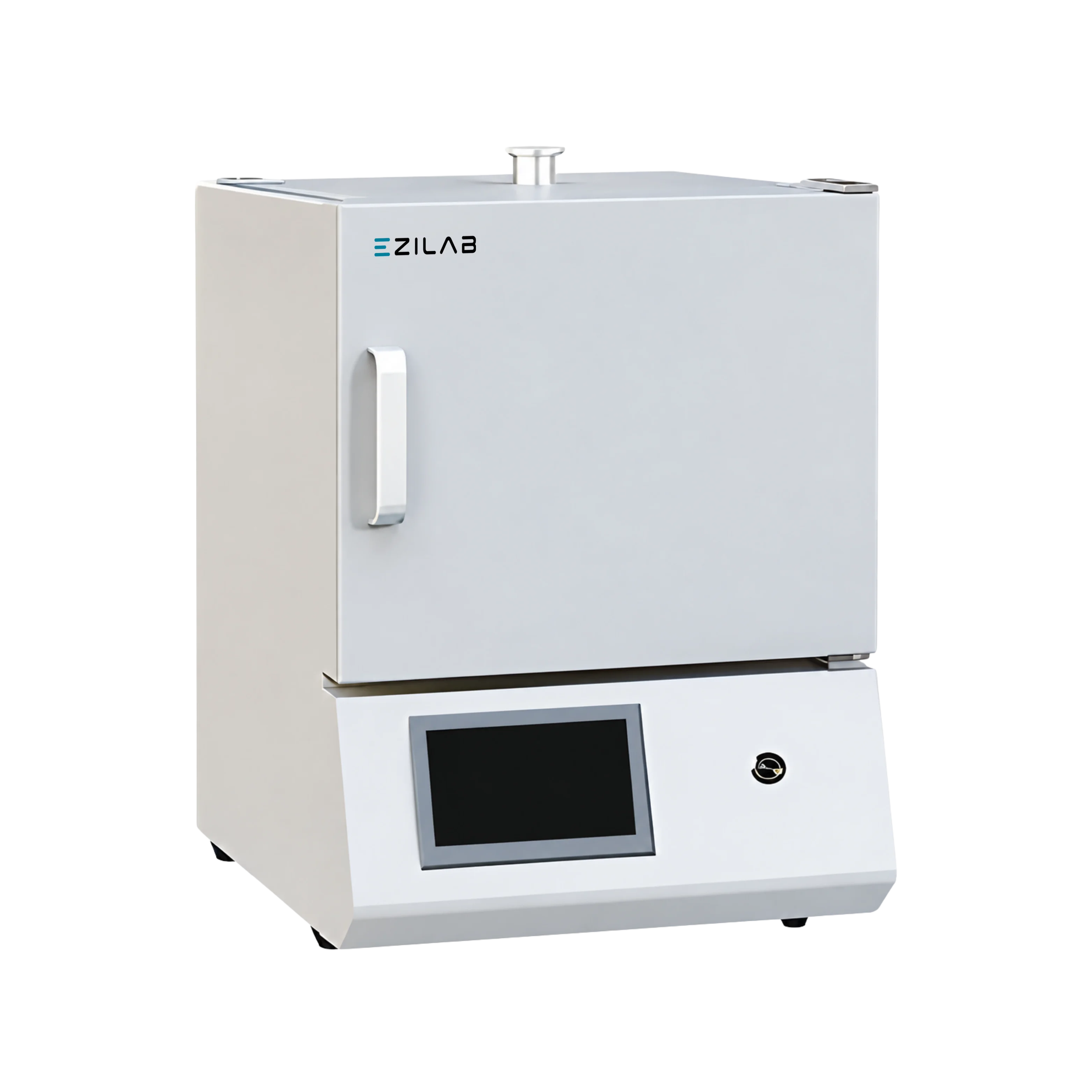

Muffle Furnace EZL-MF201

Muffle Furnace EZL-MF201

Muffle Furnace EZL-MF201 double skinned constructions keeps the exterior body cool at high temperatures and provides excellent stability. The furnace features light weight ceramic fiber insulation for rapid thermal cycling and heating by electric heating with a top vent port for natural venting or gas purging. With a capacity of 1.7 L the furnace operates at a temperature of 1500°C with a digital PID controller for precise temperature control making the equipment easy to operate. It has a one-of-a-kind safety feature to keep it from overheating and shorting out.

Catalog Buy Now
Capacity 1.7L
Maximum Working Temperature 1500°C (<1 hour)
Continuous Working Temperature RT to 1450°C
Heating Rate Maximum Heating Rate: 0 to 20°C/min
Temperature Accuracy ±1°C
Thermocouple S type
Heating Element High purity SIC heating element with excellent acid and corrosion resistance
Temperature Control PID automatic control
Furnace Material Double layer steel casing
Display 7” colour touch screen
Rated Power 1.5 Kw
Working Voltage AC 208V to 240V, 50Hz
Chamber Dimension (W×D×H) 120×120×120 mm
Overall Dimension (W×D×H) 390×630×430 mm
Net Weight 50 kg
  • Ceramic fiber furnace chamber to ensure fast heating rate and save power
  • 51 programmable segments for precise control
  • Intelligent sensor alarm function
  • Digital PID controller
  • Intuitive and easy to use operating menu
  • Easy to open door handles
  • Current temperature and setting temperature are displayed separately on control panel
  • Highly efficient fan motor ensures uniform air circulation
  • Excellent temperature accuracy
  • Simple to use and maintain
  • Over-temperature limit function
  • Less and low noise operation with gentle air currents
  • Vent hole on top is a perfect solution for waste gas during material sintering

It is an ideal device for research labs and dental labs to prepare small size samples with maximum energy saving.

Muffle Furnaces

Ezilab Muffle Furnaces utilizes ceramic fiber insulation to reduce energy consumption and achieve fast heating. They are designed with easy-to-open door handles that facilitate user convenience. Their simple user interface enables easy adjustment and monitoring of the heating process. The furnace design varies based on volumes ranging from 1L to 36L to meet specific user requirements. Our Muffle Furnaces are integrated with a highly efficient fan motor that helps in the even distribution of air within the chamber.

Ezilab Tube Furnaces utilizes an internal heating element to ensure uniform heat distribution. Their user-friendly interface facilitates easy monitoring of furnace parameters. They have temperature accuracy for efficient control of overheating. They come in a variety of temperature ranges, usually from 1200°C to 1700°C. Our Tube Furnaces incorporate safety mechanisms to prevent overheating ensuring the well-being of the furnace and the materials.
