EziLab Automatic Rotary Evaporator EZL-RE31 performs evaporation and solvent recovery with a 1L rotating bottle for laboratory distillation workflows across pharmaceutical, chemical, and biological environments. Speed range reaches 0–200 rpm for controlled film formation, while bath temperature control covers 0–99°C with 1°C variation using a PT100 sensor. Achievable vacuum reaches 0.098 MPa for low-boiling solvents, and motorized elevating provides 150 mm lift for safer flask handling. Double Teflon sealing reduces vapor leakage during runs, with heating power of 1.5 kW for fast bath warming. Suited to evaporation, concentration, crystallization, separation, and solvent recovery in pharmaceutical, chemical, and biological laboratories via Lab Equipment and EziLab's full range of laboratory evaporators for lab workflow integration.

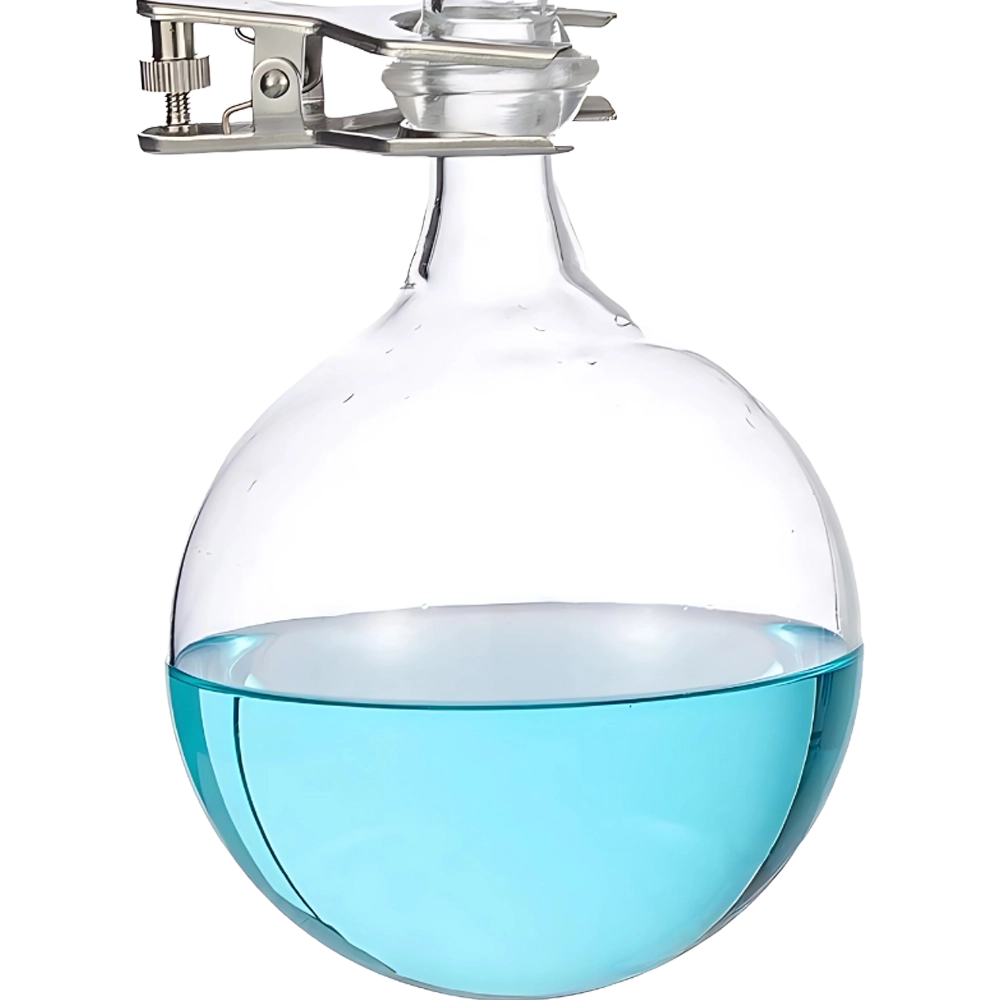

| Rotary Bottle | 1 L |
|---|---|
| Collecting Bottle | 1 L |
| Rotary Speed | 0 to 200 rpm |
| Evaporating Speed | 20 ml/min |
| Achievable Vacuum | 0.098 Mpa |
| Bath Size | 230×120 mm |
| Elevating Stroke | 150 mm |
| Temperature Range | 0 to 99°C |
| Temperature Accuracy | ±1°C |
| Temperature Display | PT100 sensor digital |
| Speed Regulation | Electronic step-less speed regulation |
| Elevating Function | Motorized elevating |
| Sealing | Double sealing with Teflon |
| Rotary Motor Power | 40 W DC motor |
| Elevating Power | 15 W |
| Heating Power | 1.5 Kw |
| Power Supply | 220V, 50/60Hz |
| Dimension (L×W×H) | 600×420×830 mm |
| Gross Weight | 23 Kg |
Double sealing with Teflon and Fluoro rubber to ensure high vacuum degree
Borosilicate glass, which is resistant to high temperatures and corrosion
Continuous feeding is convenient for users

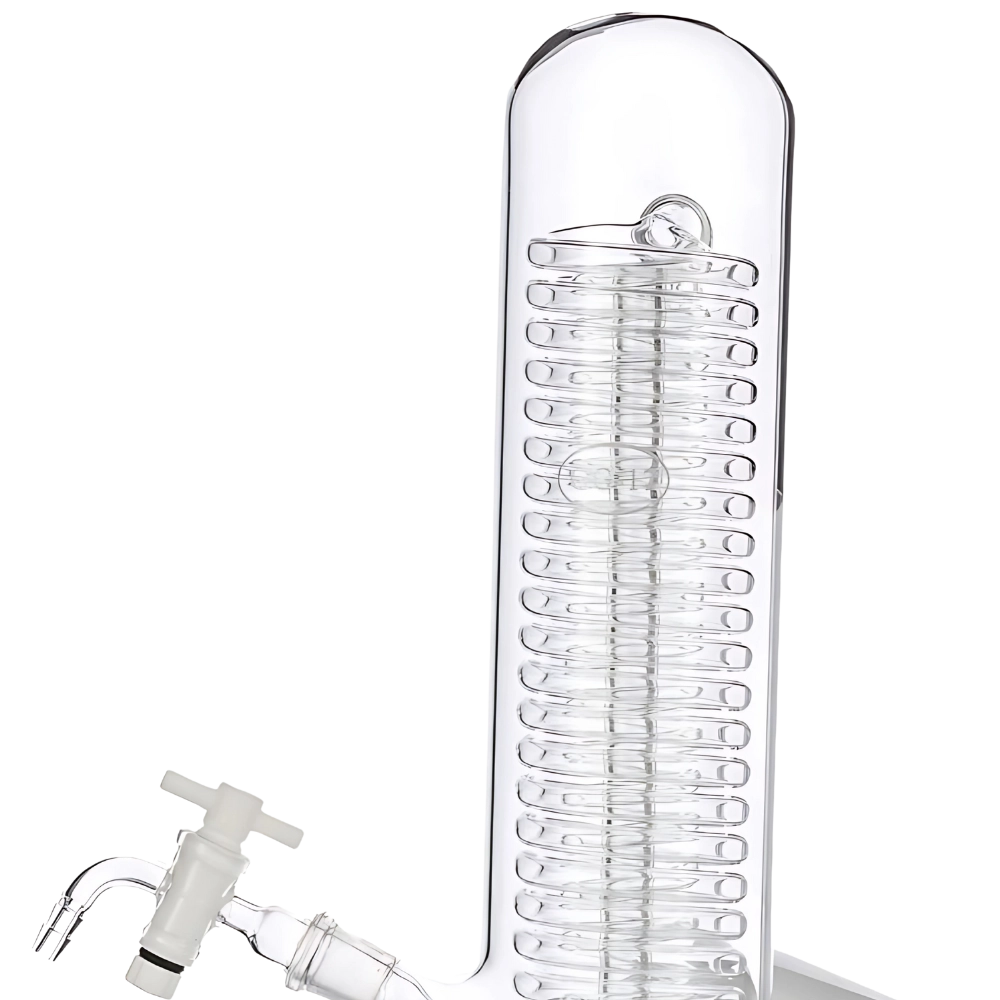

Up-right double layer serpentine coil condenser to ensure high recovery rate

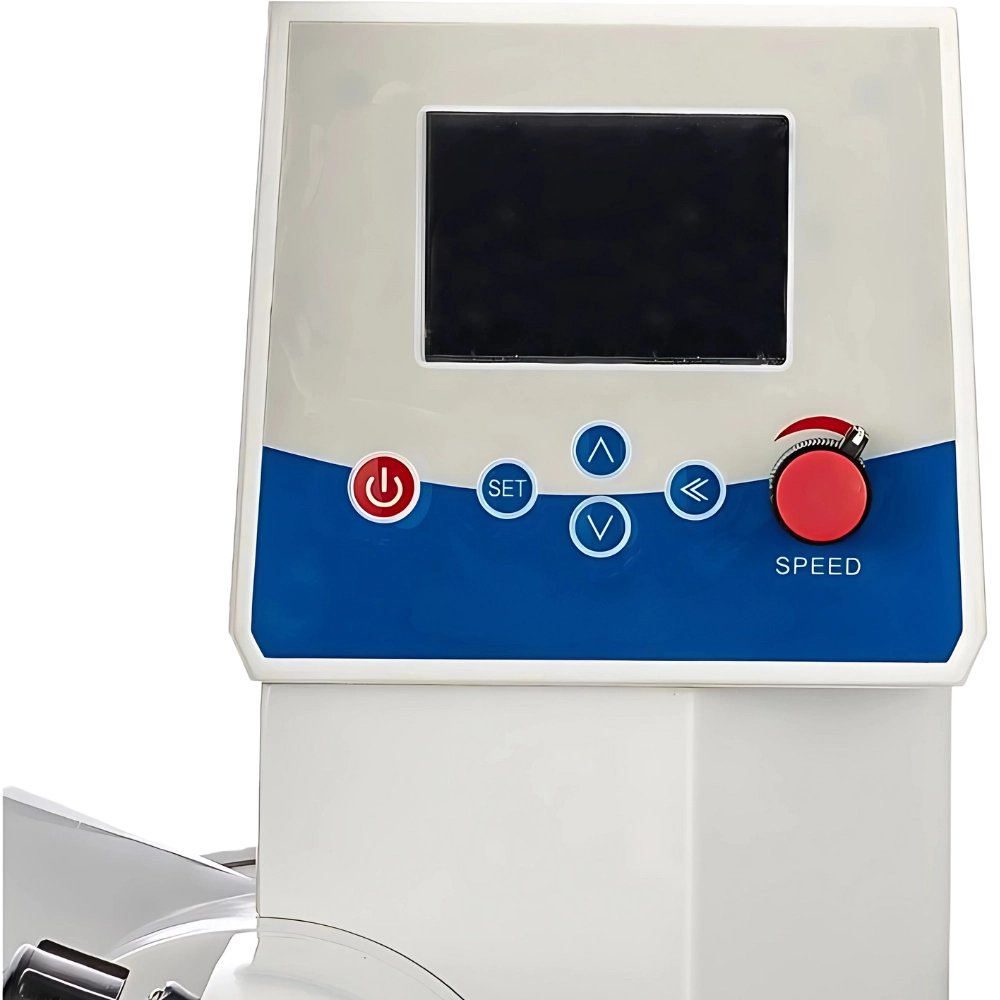

Large LCD screen can display speed and temperature parameters at same time
Intelligent constant temperature control of the bath with PT100 sensor
Adopts high speed performance with single chip microcontroller
High rated condenser with exceptional cooling properties
Heats up quickly because of optimized bath volumes

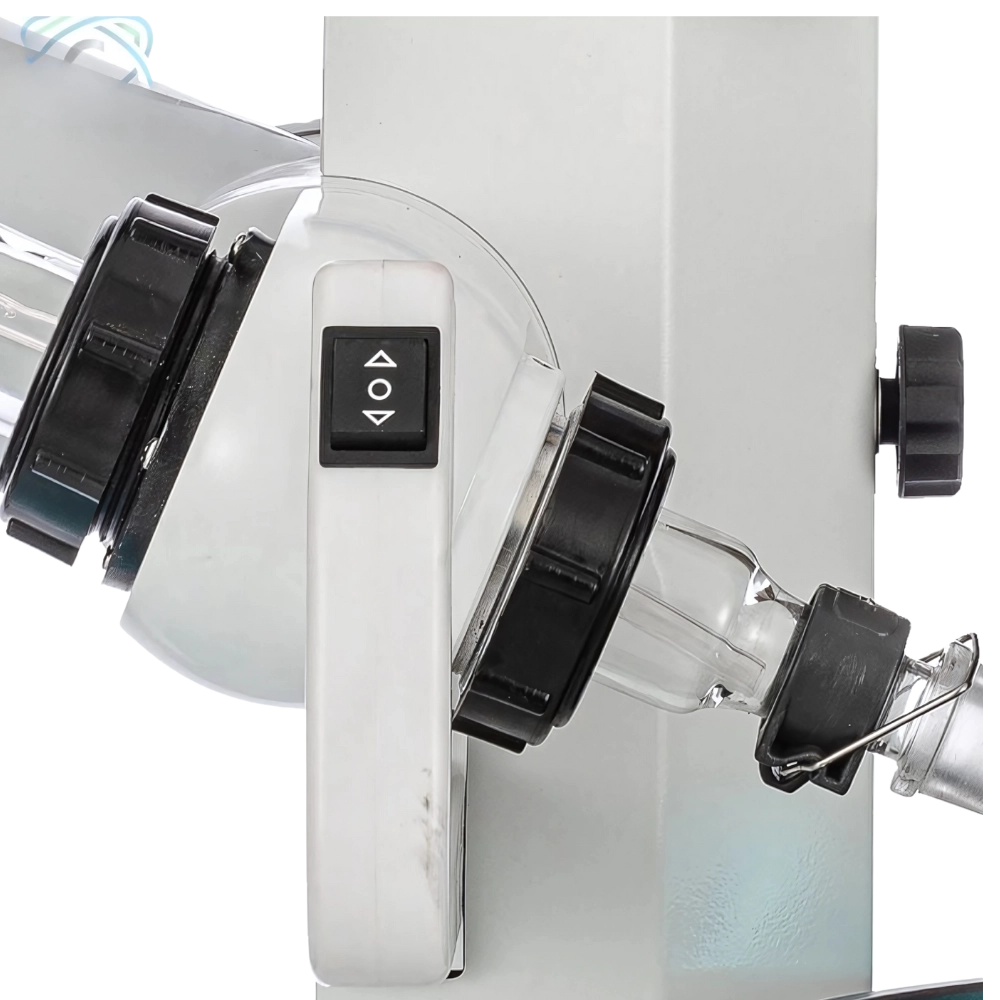

Easy and jolt-free raising and lowering of rotary evaporator
Adjustable final position recognition to protect operator and sample against breaking
DC motor automatic motorized lift
It is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in research and production of medicine, chemical and biological products etc.
