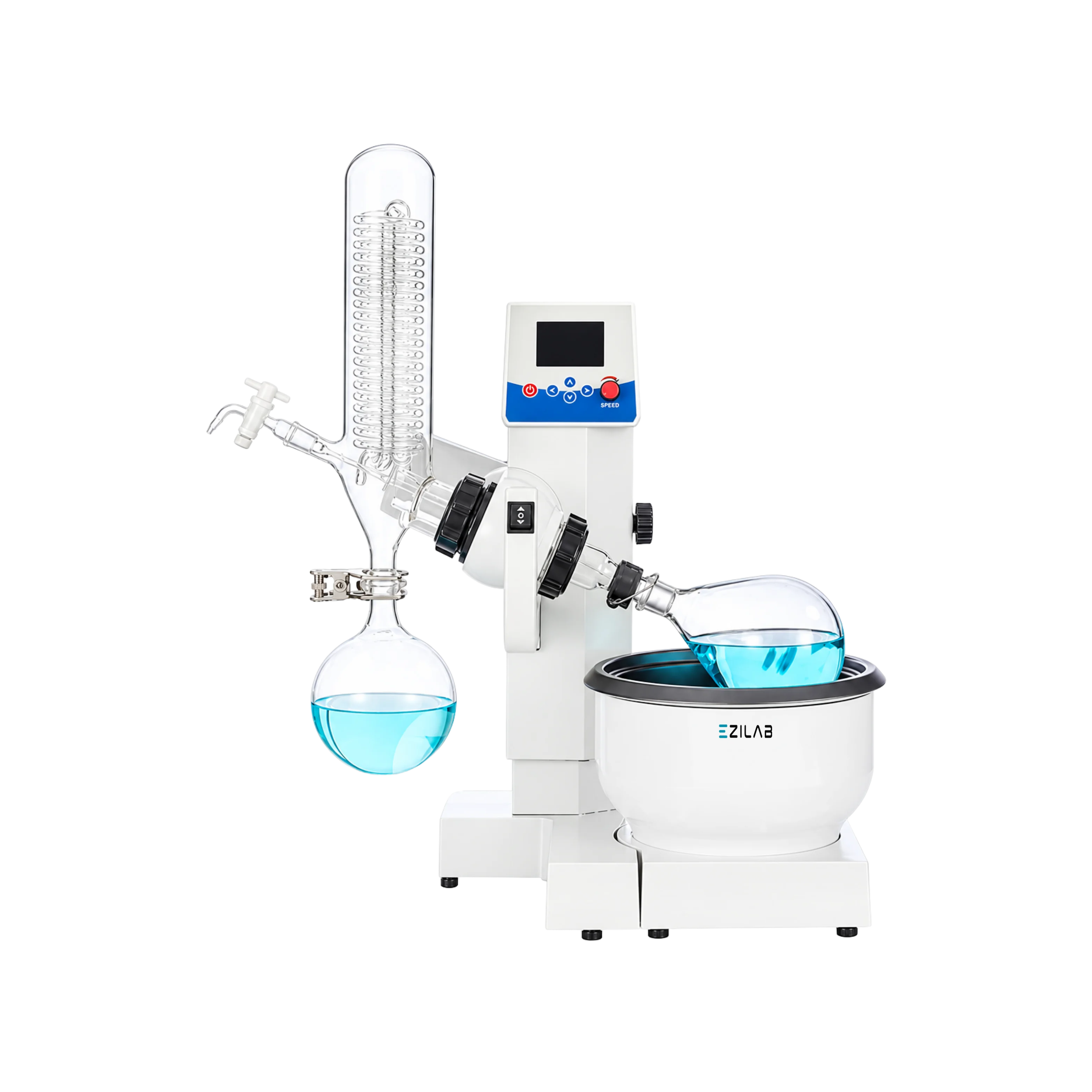

EziLab Automatic Rotary Evaporator EZL-RE34 runs a 5L rotating bottle with a 2L collecting bottle for mid-scale laboratory distillation workflows across pharmaceutical, chemical, and biological environments. Rotation speed reaches 0–180 rpm for stable film evaporation, while bath temperature range covers RT–180°C with 1°C variation on an LCD display. Achievable vacuum reaches 0.098 MPa to reduce boiling points, and automatic elevating provides 120 mm stroke for controlled flask positioning. Double PTFE sealing helps maintain vacuum integrity during solvent removal, with heating power of 2 kW for bath heating stability. Suited to evaporation, concentration, crystallization, separation, and solvent recovery in pharmaceutical, chemical, and biological production labs via Lab Equipment and EziLab's full range of laboratory evaporators for lab workflow integration.
| Rotary Bottle | 5 L |
|---|---|
| Collecting Bottle | 2 L |
| Rotary Speed | 0 to 180 rpm |
| Achievable Vacuum | 0.098 Mpa |
| Bath Size | 280×170 mm |
| Elevating Stroke | 120 mm |
| Temperature Range | RT to 180°C |
| Temperature Accuracy | ±1°C |
| Temperature Display | LCD digital |
| Elevating Function | Automatic elevating |
| Sealing | Double sealing with Teflon (PTFE) |
| Rotary Motor Power | 40 W |
| Elevating Power | 20 W |
| Heating Power | 2 Kw |
| Power Supply | 220V, 50/60Hz |
| Dimension (L×W×H) | 700×410×880 mm |
| Packing Dimension (L×W×H) | 640×540×690 mm |
| Gross Weight | 42.5 Kg |
Double sealing with Teflon and Fluoro rubber to ensure high vacuum degree
Main body is made up of aluminum alloy

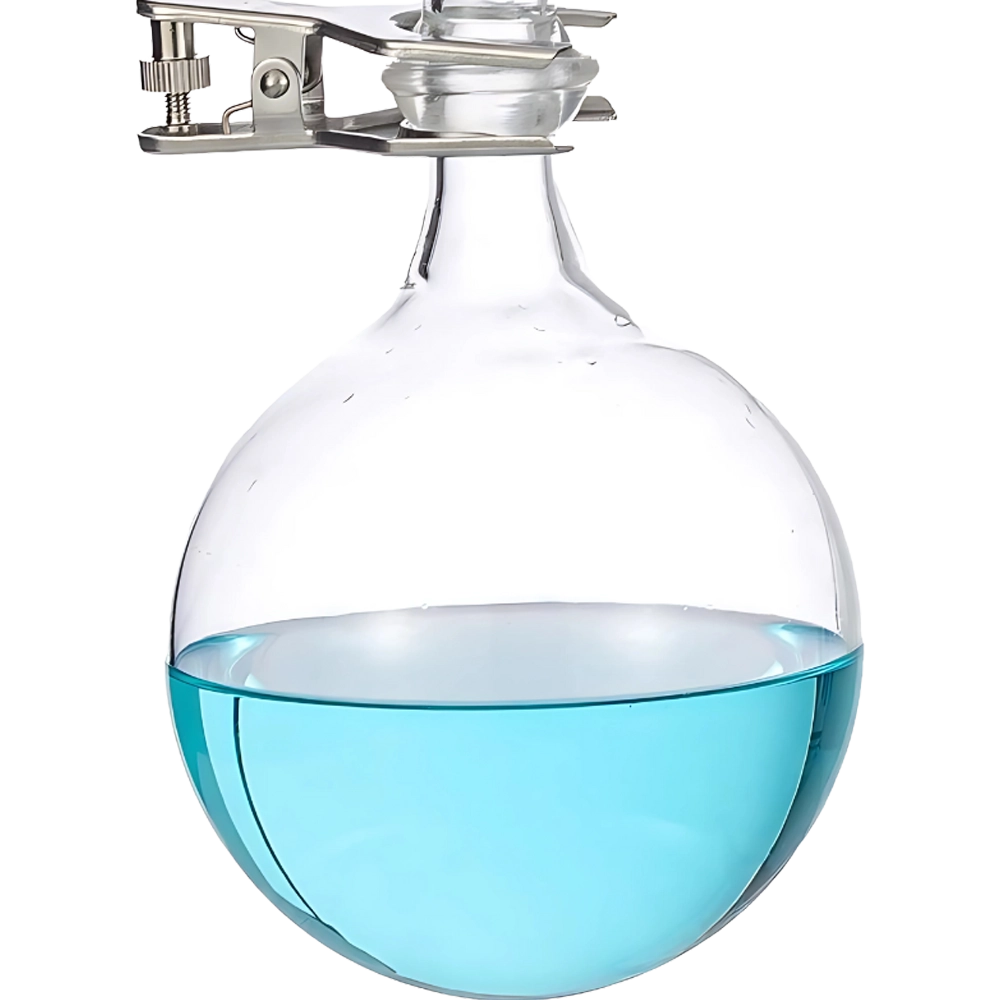

Borosilicate glass, which is resistant to high temperatures and corrosion

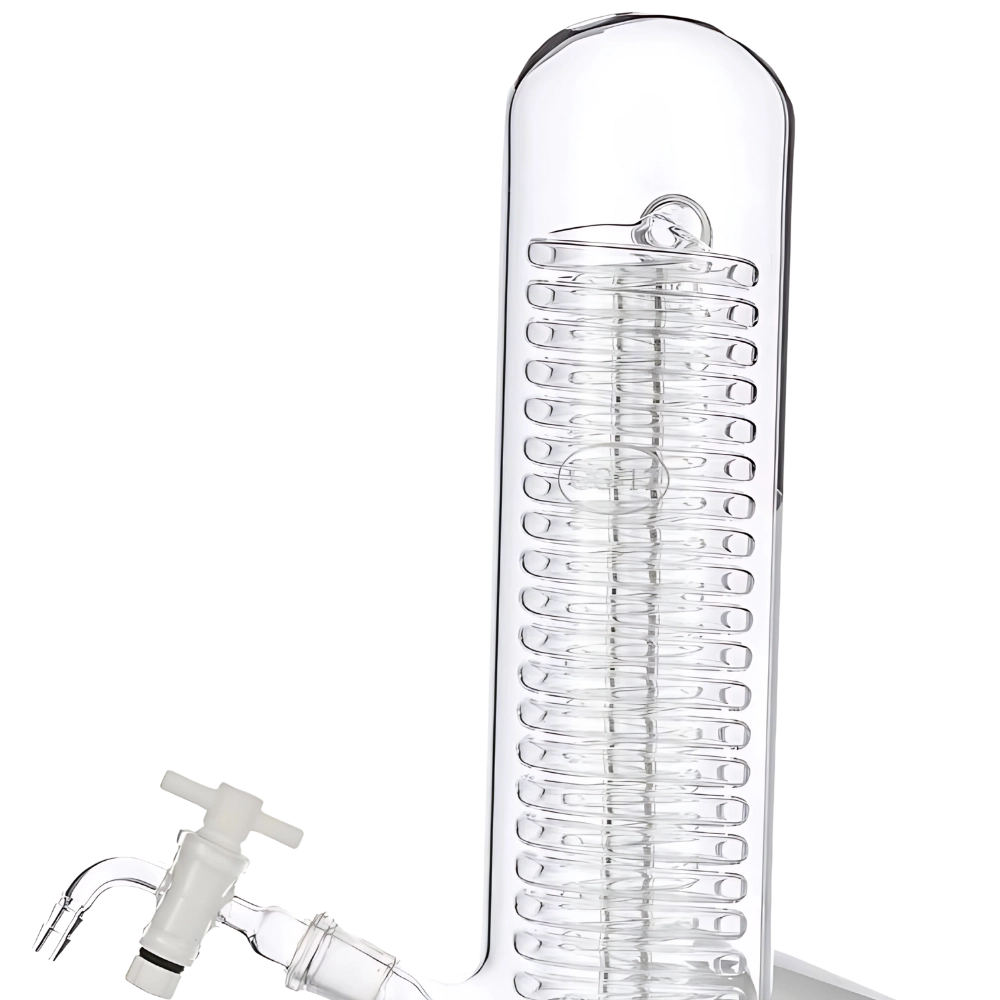

Up-right double layer serpentine coil condenser to ensure high recovery rate

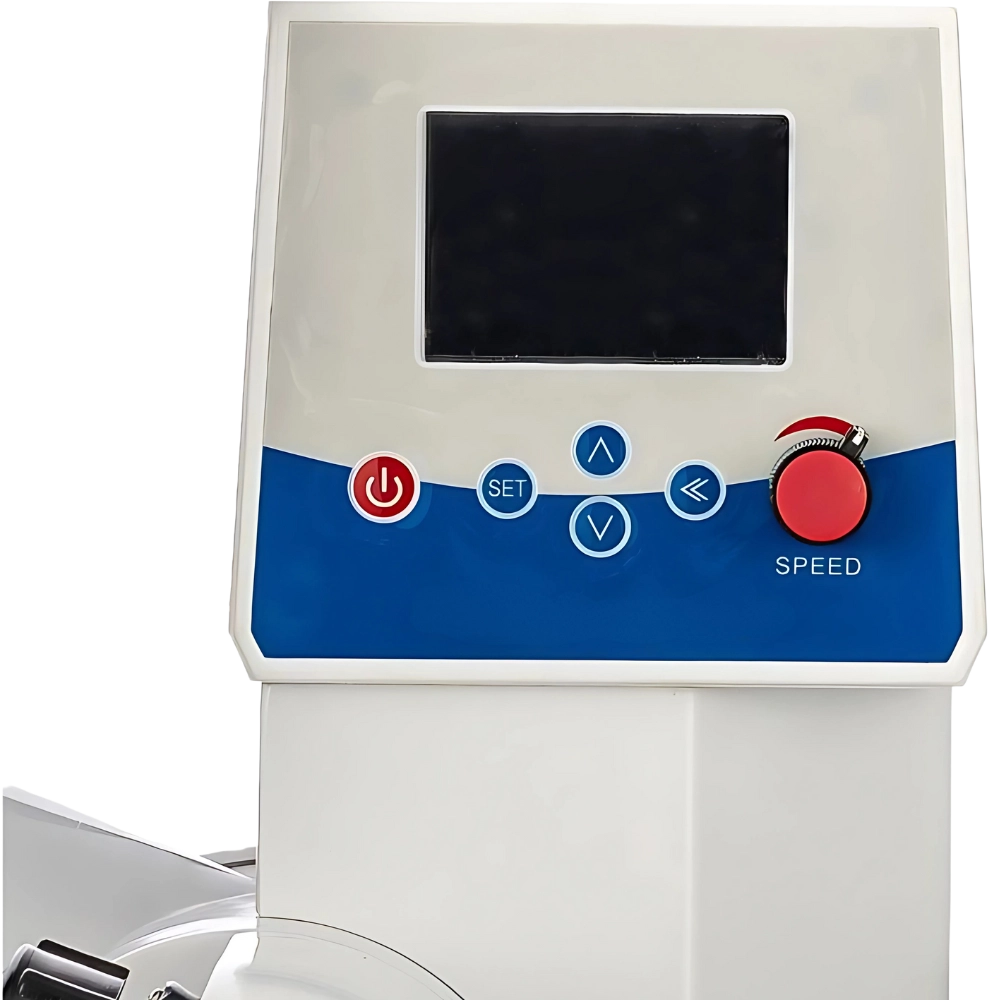

Large LCD screen can display speed and temperature parameters at same time
Intelligent constant temperature control of the bath with PT100 sensor
Adopts high speed performance with single chip microcontroller
High rated condenser with exceptional cooling properties
Heats up quickly because of optimized bath volumes

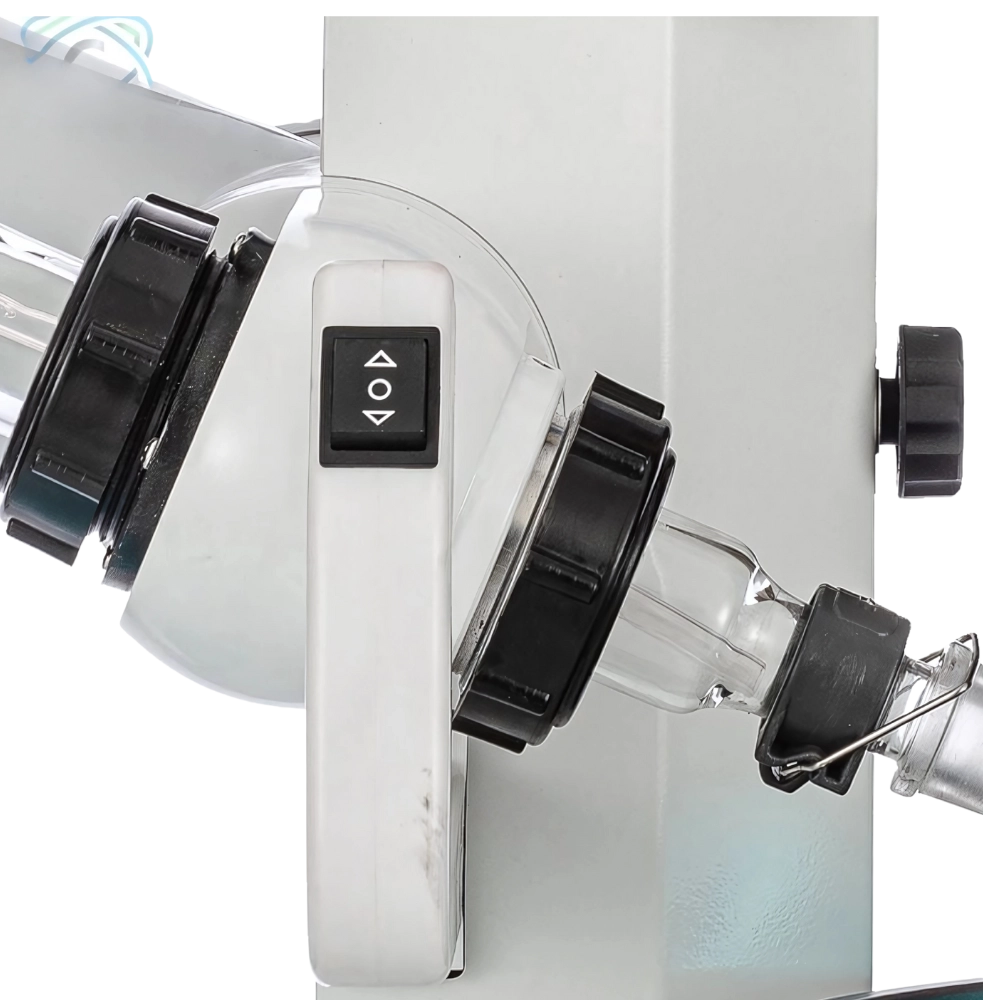

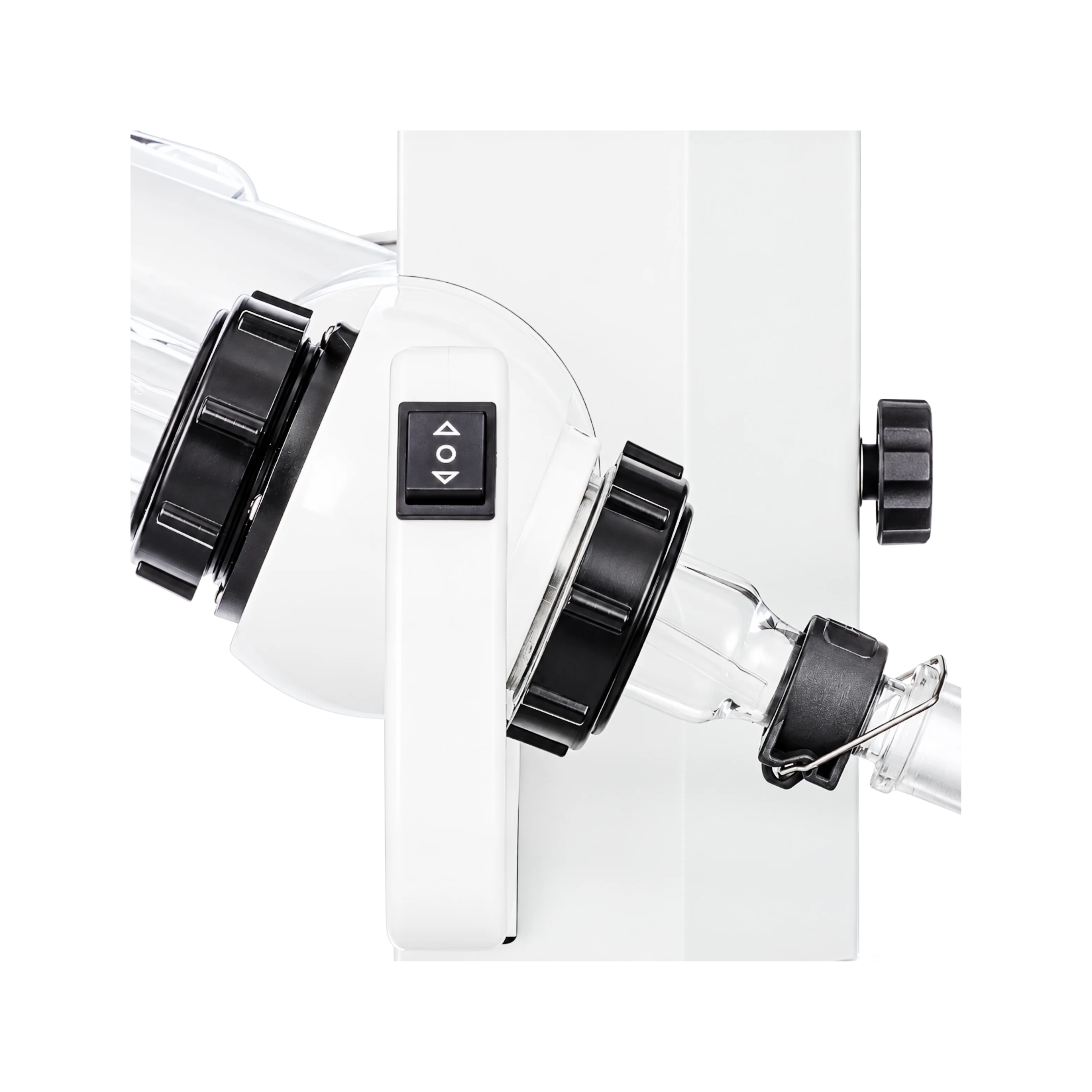

Easy and jolt-free raising and lowering of rotary evaporator
Adjustable final position recognition to protect operator and sample against breaking
DC motor automatic motorized lift
It is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in research and production of medicine, chemical and biological products etc.
