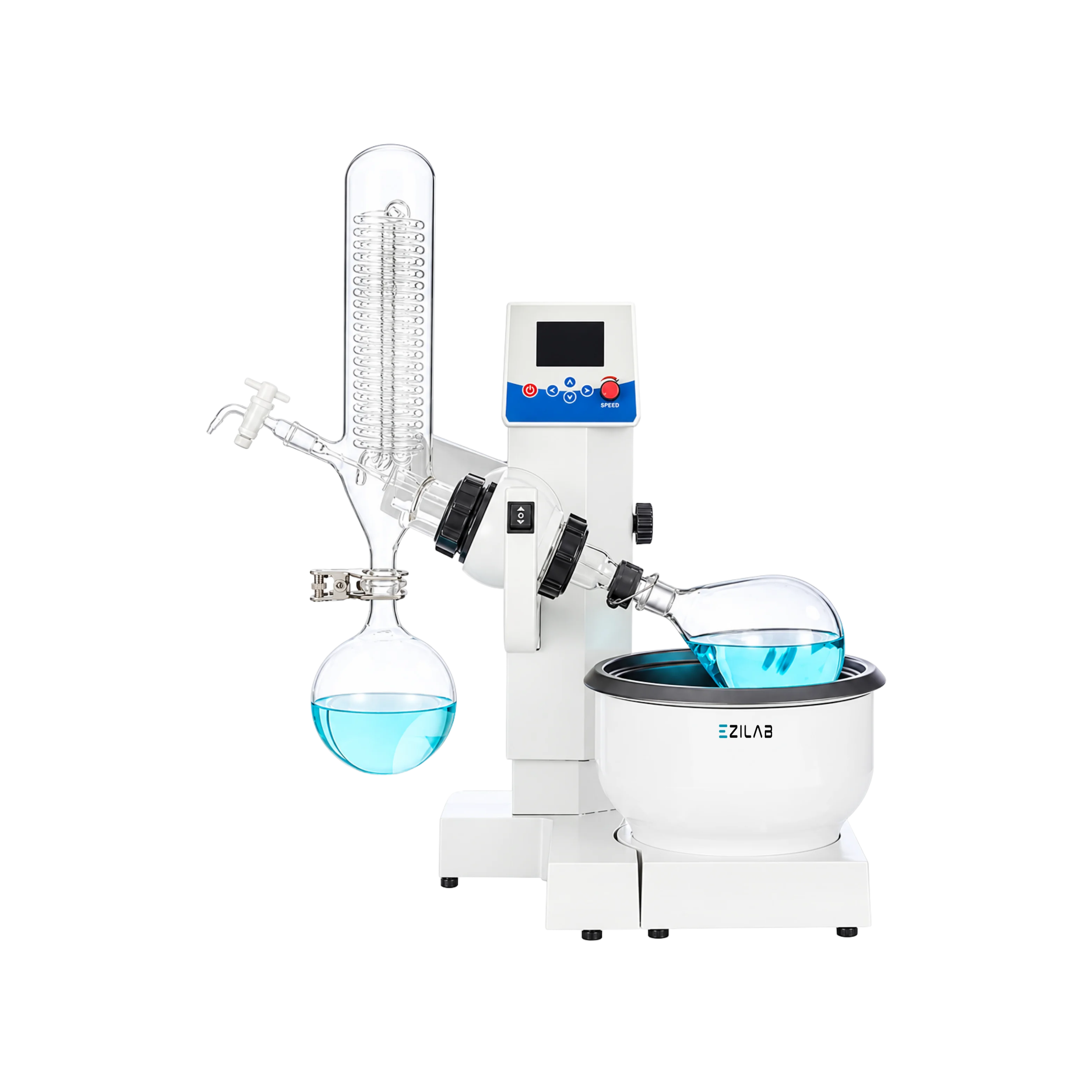

EziLab Automatic Rotary Evaporator EZL-RE36 manages larger solvent loads with a 10L rotating bottle and 5L collecting bottle for laboratory distillation workflows across pharmaceutical, chemical, and biological production environments. Rotation speed range is 10–130 rpm for stable evaporation control, with evaporation capability reaching 3.2 L/h for water and 6.5 L/h for alcohol. Achievable vacuum reaches 0.098 MPa for reduced-pressure processing, and bath temperature range reaches 0–399°C with 1°C variation on an LCD display. Automatic elevating provides 150 mm stroke for controlled flask movement, and double PTFE sealing helps maintain vacuum integrity during solvent removal. Suited to evaporation, concentration, crystallization, separation, and solvent recovery in pharmaceutical, chemical, and biological production via Lab Equipment and EziLab's full range of laboratory evaporators for lab workflow integration.
| Rotary Bottle | 10 L |
|---|---|
| Collecting Bottle | 5 L |
| Rotary Speed | 10 to 130 rpm |
| Opening Flange Diameter | F95 mm |
| Achievable Vacuum | 0.098 Mpa |
| Elevating Stroke | 150 mm |
| Evaporating Capability | Water : 3.2L/HAlcohol : 6.5L/H |
| Temperature Range | 0 to 399°C |
| Temperature Accuracy | ±1°C |
| Temperature Display | LCD digital |
| Elevating Function | Automatic elevating |
| Sealing | Double sealing with Teflon (PTFE) |
| Rotary Motor Power | 90 W |
| Power Supply | 4.8 Kw |
| Rated Power Supply | 220V, 50/60Hz |
| Dimension (L×W×H) | 920×550×1700 mm |
Double sealing to ensure high vacuum degree
Main body is made up of aluminum alloy + stainless steel
All valves adopt latest integrated hand wheel valve
Microcomputer powered switch control
Borosilicate glass, which is resistant to high temperatures and corrosion
Up-right double layer serpentine coil condenser to ensure high recovery rate
Large LCD screen can display speed and temperature parameters at same time
Intelligent constant temperature control of the bath with PT100 sensor
Adopts high speed performance with single chip microcontroller
High rated condenser with exceptional cooling properties
Heats up quickly because of optimized bath volumes
Easy and jolt-free raising and lowering of rotary evaporator
Adjustable final position recognition to protect operator and sample against breaking
DC motor automatic motorized lift
It is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in research and production of medicine, chemical and biological products etc.
