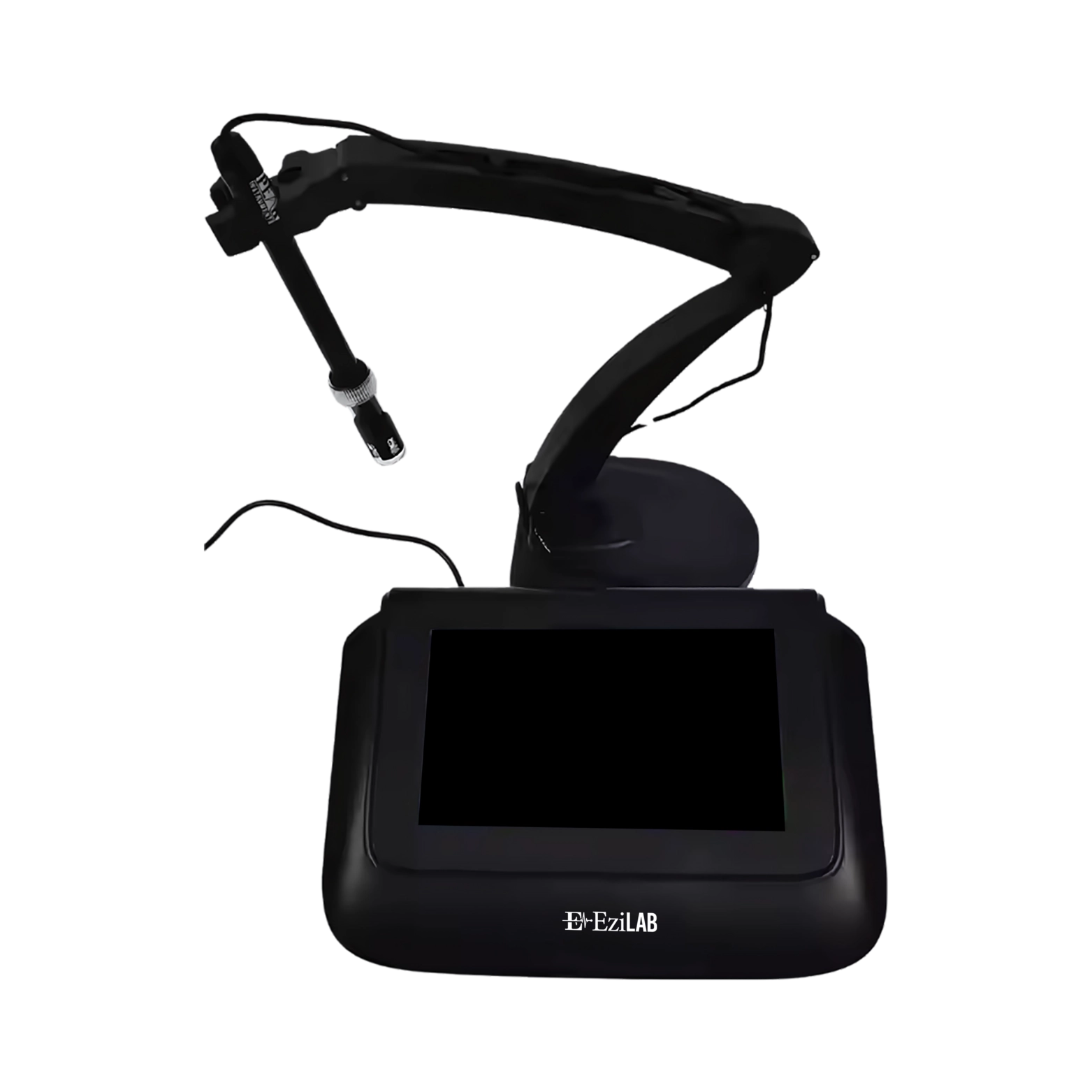

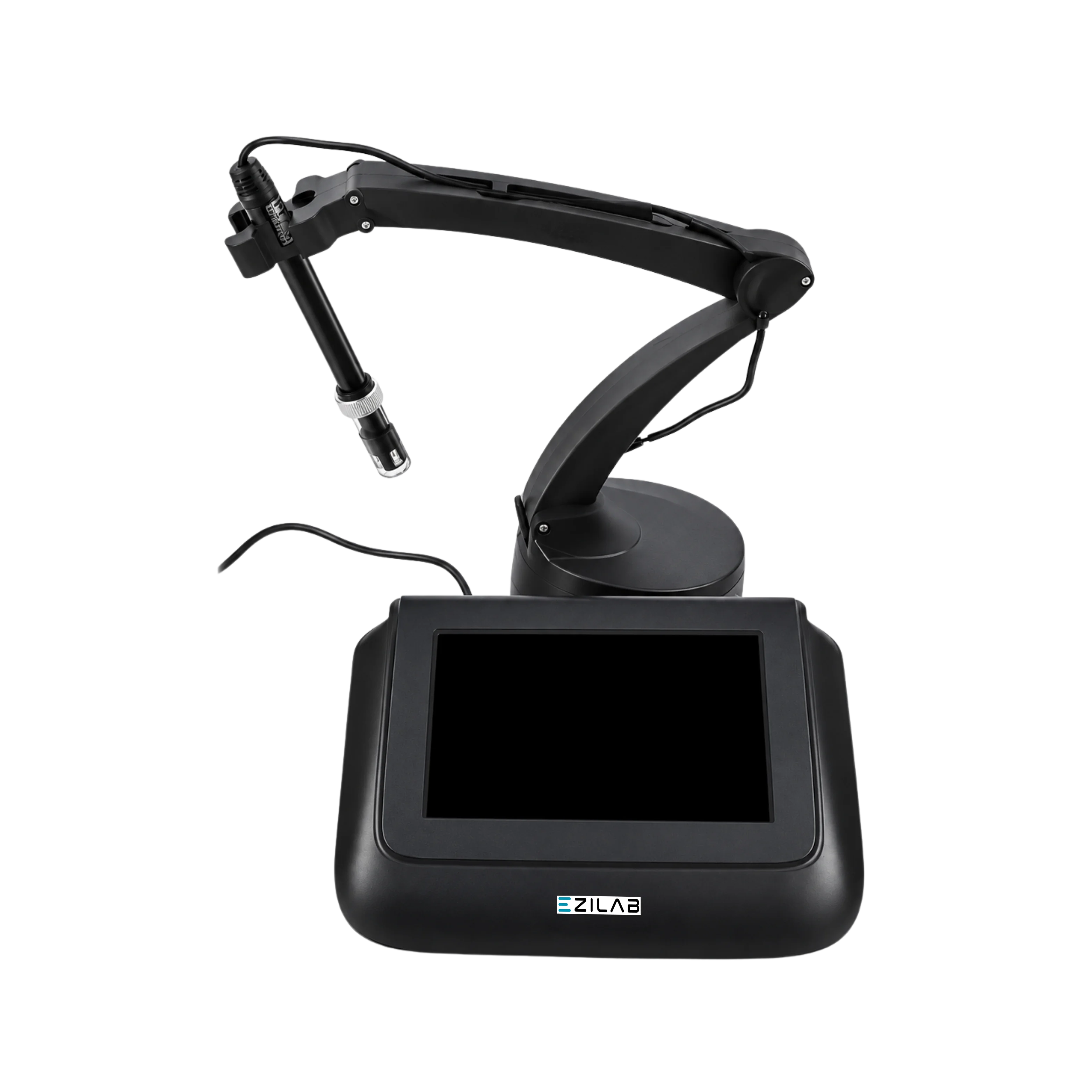

Desktop Conductivity Meter EZL-DCM121

Desktop Conductivity Meter EZL-DCM121

The Desktop Conductivity Meter EZL-DCM121 has a water-resistant membrane keypad and a large dual display. The conductivity measuring range of the model is 0.00 µS/cm to 200.0 mS/cm. At an ambient temperature of 5 °C to 35 °C, a 0 to 100 g/L TDS with a resistivity of 0 to 100 MW.cm and automatic temperature compensation ranging from 0 °C to 100 °C having an accuracy of 5 °C to 60 °C : ± 0.5 °C and others: ± 1.0 °C controls temperature variations and provides greater precision.

Catalog Buy Now
Measuring Range 0.00 to 20.00 µS/cm
20.0 to 200.0 µS/cm
200 to 2000 µS/cm
2.00 to 20.00 mS/cm
20.0 to 200.0 mS/cm
Resistivity 0 to 100 MΩ.cm
TDS 0 to 100 g/L
Salinity 0 to 100 ppt
Resolution 0.01/0.1/1 µS/cm 0.01/0.1 mS/cm
Accuracy Electrode: ± 1.0 % FS
Instrument: ± 1.50 % FS
Temperature Compensation 0 °C to 100 °C (Automatic)
Electrode Constant 0.1/1/10 cm-1
Temperature Measuring Range 10 °C to 110 °C
Temperature Resolution 0.1 °C
Temperature Accuracy 5 °C to 60°C: ± 0.5 °C Others: ± 1.0 °C
Ambient Temperature 5 °C to 35 °C
Ambient Humidity ≤ 80 %
Power DC 12V/1A
Dimensions (W×D×H) 240×170×70 mm
Weight 600 g
  • 7-inch high resolution capacitive touch screen
  • Auto-calibration, automatic temperature compensation electrode, data storage, USB port, self-diagnosis functions
  • Bilingual operation
  • Data storage of 1000 sets of measurement data and is transferable
  • Auto-recognition of 8 conductivity standard solutions
  • Bluetooth module and wireless printer
  • Optional PC software and cell phone APP
  • 1 point calibration of electrode meet accuracy for 0.5µS/cm – 200mS/cm
  • Switch between conductivity, TDS, salinity and resistivity
  • Multinomial calculation of TDS, salinity
  • Smart judge electrode status for accurate results
  • Dustproof and waterproof meter meet IP54 Grade
  • Has a “ready” indicator and HOLD function

It has a wide range of applications, including high precision conductivity measurements in scientific research, quality control, biotechnology, and fine chemistry, such as measuring the conductivity of common water solutions, high purity water, reverse osmosis water, and distilled water.

Desktop Conductivity Meter LO-DCM100 Series 1 pc
Composite Conductivity Electrode 1 pc
Power Adapter 1 pc
Electrode Holder and Base 1 set
Instruction Manual in USB 1 copy

Desktop Conductivity Meter

Ezilab Desktop Conductivity Meter have a high-resolution capacitive touch screen for easy user interaction. The dust and waterproof meter meets IP54 grade standards, ensuring protection against dust and water. Their bilingual operation allows users to interact with two languages, enhancing user accessibility. Their Bluetooth module and wireless printer enable convenient data transfer and printing for user convenience. Our Desktop Conductivity meter includes a ready indicator and hold function for improved measurement control.

Ezilab Table Top Conductivity Meter includes functions like auto-calibration, and automatic temperature compensation ensuring efficient operation. Their LCD screen displays all parameters clearly for easy monitoring. The multinomial calculation for TDS and salinity enhances measurement accuracy. They have auto-recognition of 8 conductivity standard solutions that simplify calibration for precise measurements. Our Table Top Conductivity Meter have long-lasting Omron and a light touch panel that enhances durability.

Ezilab Compact Conductivity Meter have non-linear temperature adjustments to enhance measurement features. They have large LCD screens with a white backlight that provides a clear display ensuring easy data visibility. Their auto-recognition of conductivity solutions ensures accurate measurements without manual inputs. The series of standard buffers provides flexible and precise calibrations. Our Compact Conductivity Meter includes multinomial calculations for TDS and salinity ensuring measurement accuracy.
