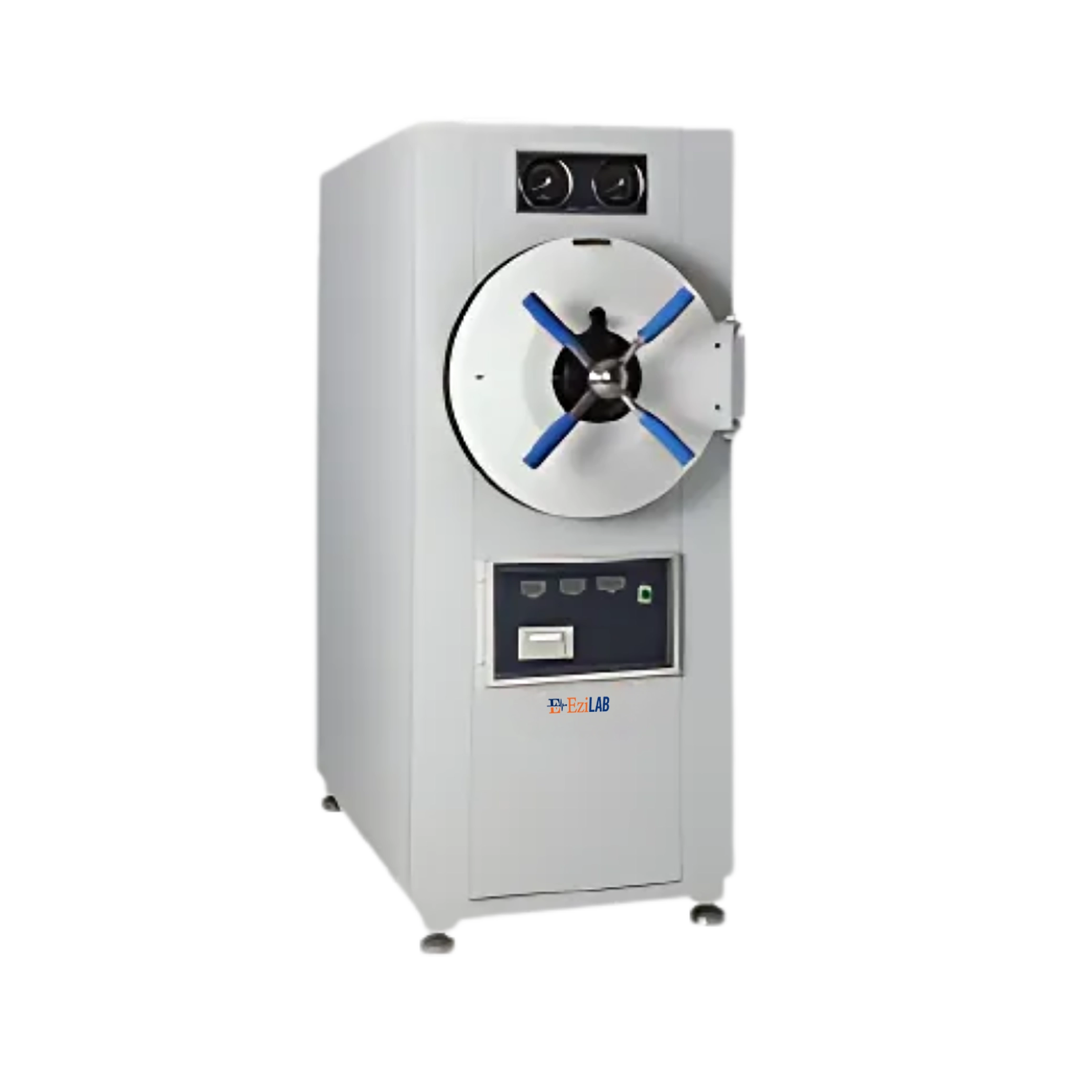

Horizontal Pressure Steam Sterilizer EZL-HS82 is a front loading floor standing sterilizer designed to process a wide range of materials. The unit has a maximum temperature range of 134°C, a chamber volume of 200 L, and a dimension of 440×1000 mm. During sterilization, the microprocessor-controlled system automatically adjusts the steam inlet and outlet based on the chamber temperature. The sterilizing chamber is made of corrosion-resistant stainless steel that is easy to clean, and it is controlled by a robust screen that provides fully automatic logging.
| Sterilizing Chamber Volume | 200 L |
|---|---|
| Working Pressure | 0.22MPa |
| Working Temperature | 134°C |
| Adjustable Temperature Range | 40° - 134°C |
| Sterilization Time | 0 – 99 min |
| Drying Time | 0 – 99 min |
| Heat Average | ≤± 2°C |
| Power | 10 KW |
| Power Supply | AC 380V, 50Hz |
| Chamber Dimension (ɸ×D) | 515×1000 mm |
| Dimension (L×W×H) | 1400×750×1700 mm |
| Package Dimension (L×W×H) | 1560×910×1880 mm |
| Net Weight | 350 Kg |
| Gross Weight | 436 Kg |
Automatic controlled sterilizing process
High grade stainless steel chamber
Standard operation via a digital display
High-efficiency and easy to use
Exhausts the cool air automatically
Leak-proof sealing with gasket design
Provides clean and dry environment for sterilization
Safety door lock system
Automatic low level water cut off mechanism
Built-in mini printer to record the sterilizing information
Audible indication in case when cycle is incomplete
User friendly control panel
It is ideal for material tests like pressure vessel test, quality control, and class B program cycles. As well for food preservation, culture media preparation, sterilization of waste in liquids, bottles, instruments, porous materials, synthetic materials and glass ware in hospitals, food industries, clinical laboratories, medical institutes, science and research organizations etc.
