EziLab Rotary Evaporator EZL-RE24 manages mid-scale evaporation with a 5L rotating bottle and 3L collecting bottle for laboratory distillation workflows across pharmaceutical, chemical, and biological environments. Rotation speed runs from 0–120 rpm with electronic step-less control, while evaporation rate reaches 60 ml/min for higher throughput. Bath temperature range covers 0–180°C with 1°C variation for controlled heating, and achievable vacuum reaches 0.098 MPa for reduced-pressure operation. Manual elevating provides 220 mm stroke for flask positioning, and a vertical condenser improves vapor recovery during processing. Suited to evaporation, concentration, crystallization, separation, and solvent recovery in pharmaceutical, chemical, and biological laboratories via Lab Equipment and EziLab's full range of laboratory evaporators for lab workflow integration.
| Rotary Bottle | 5 L |
|---|---|
| Collecting Bottle | 3 L |
| Rotary Speed | 0 to 120 rpm |
| Evaporating Speed | 60 ml/min |
| Achievable Vacuum | 0.098 Mpa |
| Bottom Plate Size | 350×330 mm |
| Elevating Stroke | 220 mm |
| Temperature Range | 0 to 180°C |
| Temperature Accuracy | ±1°C |
| Display | Digital display |
| Speed Regulation | Electronic step less speed regulation |
| Condensing Tube | Vertical type ɸ100×590 mm |
| Elevating function | Manual elevating |
| Vacuum Sealing | Double sealing with Teflon (PTFE) |
| Rotary Motor Power | 40 W |
| Heating Power | 2 Kw |
| Power Supply | 220V, 50/60Hz |
| Dimension (L×W×H) | 735×375×1100 mm |
| Packing Dimension (L×W×H) | 995×590×490 mm |
| Weight | 44 Kg |
Double sealing with Teflon and fluorous rubber to ensure high vacuum degree
Air extraction nozzle of condenser is set down, and it is safer after connection with vacuum pipe
Borosilicate glass, which is resistant to high temperatures and corrosion
Continuous feeding is convenient for users
Electronic step less speed regulation

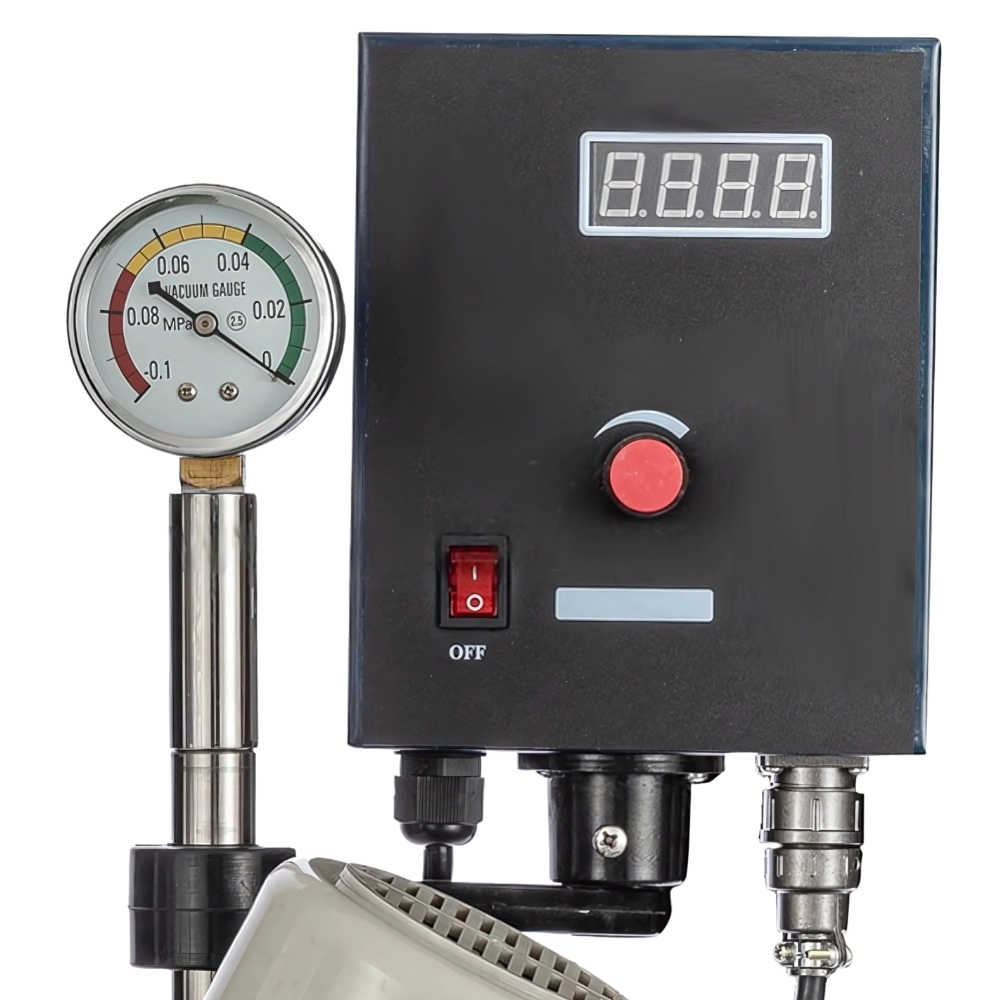

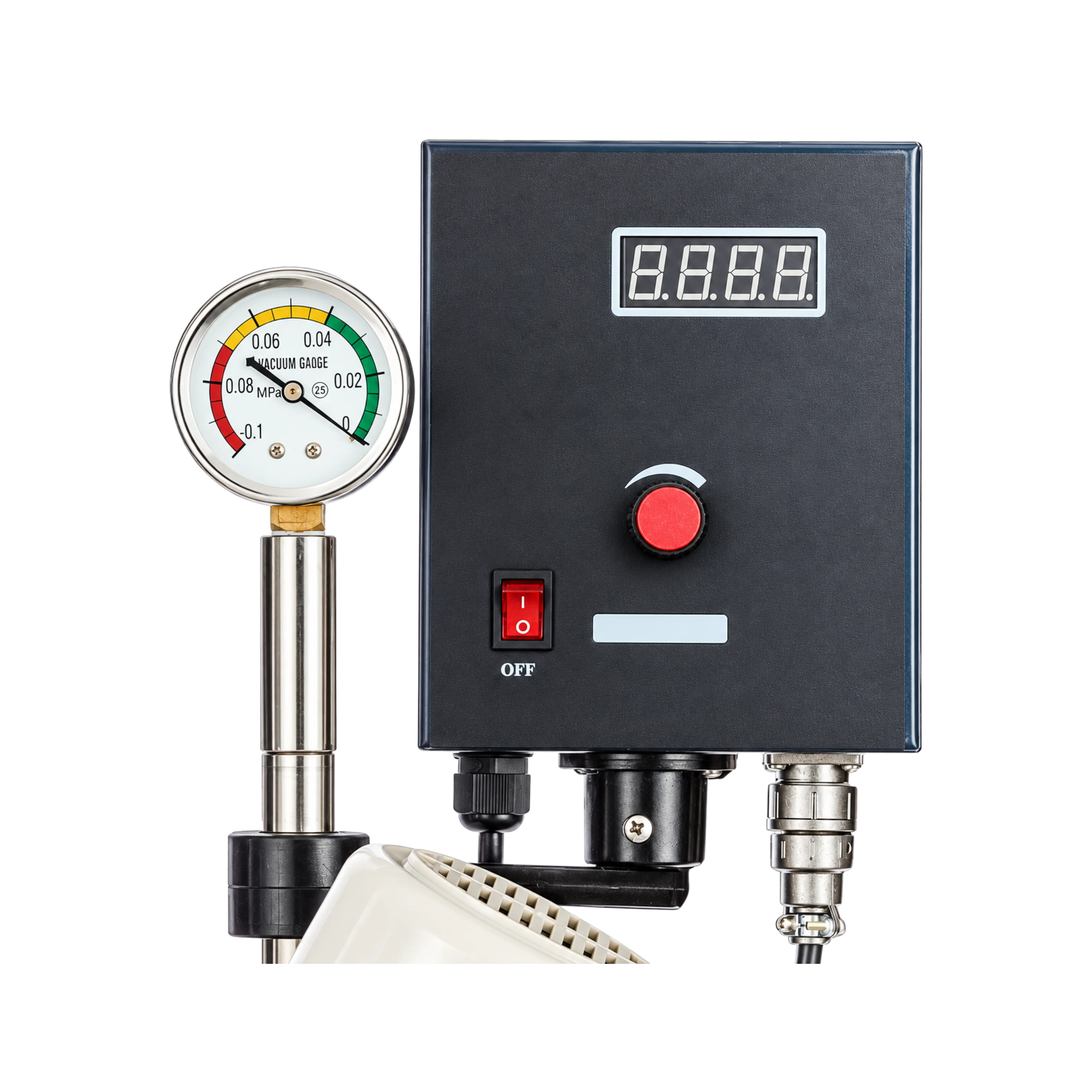

Vacuum pressure gauge displays real time vacuum degree

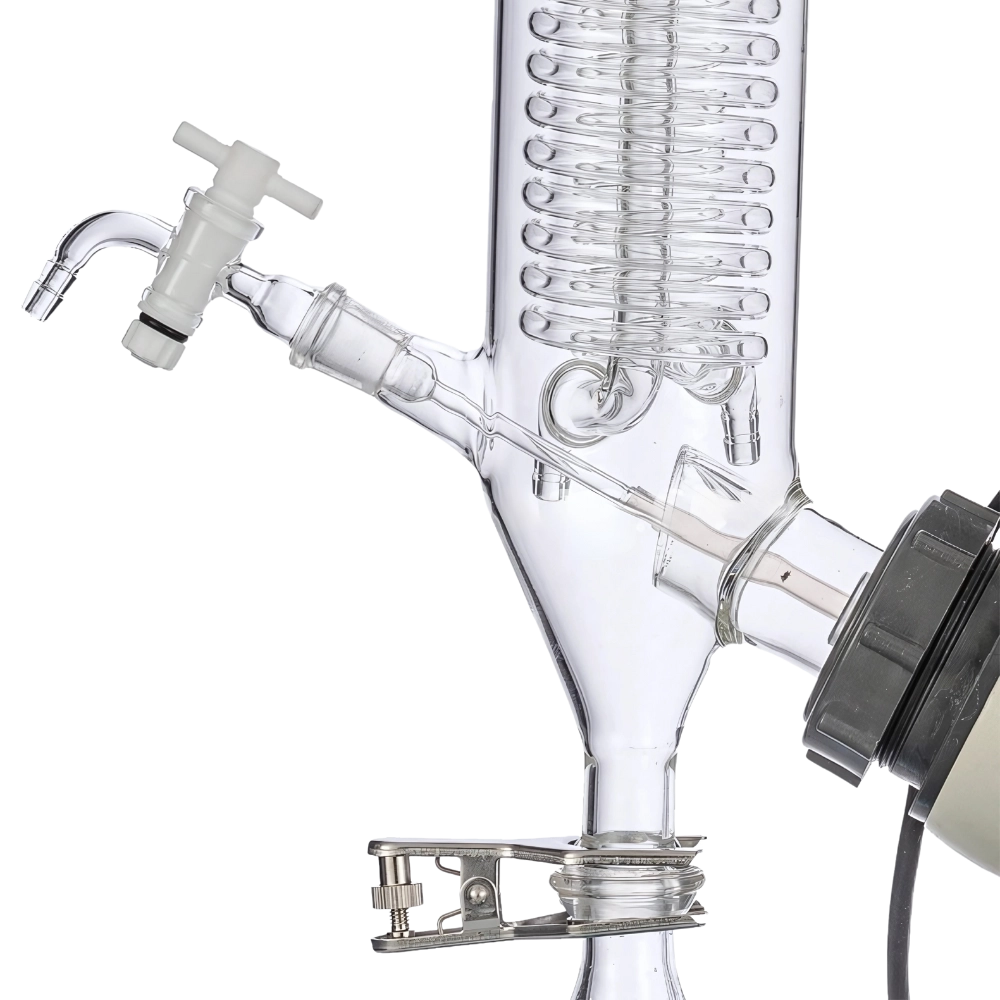

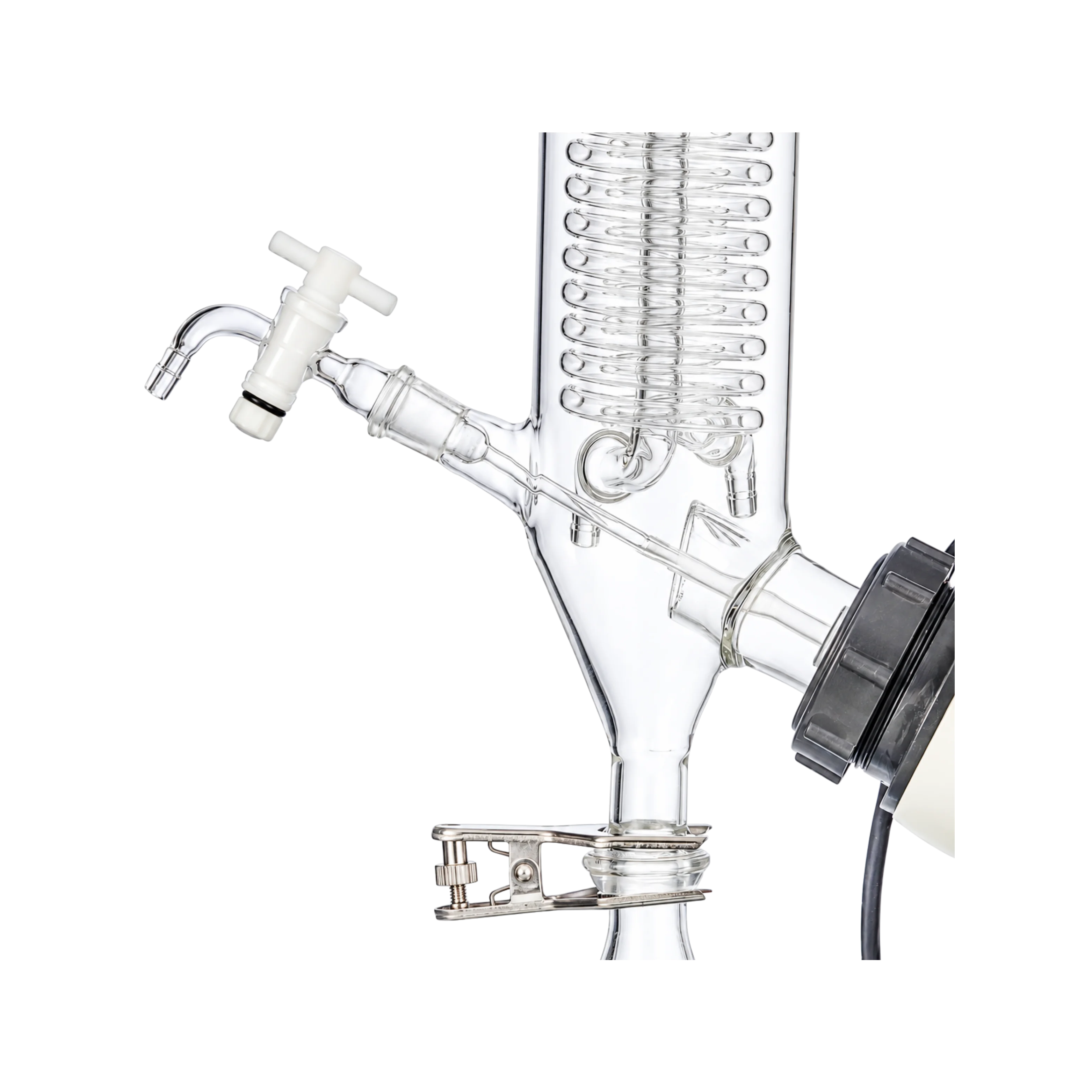

Up-right double layer serpentine coil condenser to ensure high recovery rate
Stainless steel and aluminum alloy main body bracket
Easy and smooth operation of lifting and moving
Separation of bath and mainframe makes configuration flexible
High rated condenser with exceptional cooling properties
Heats up quickly because of optimized bath volumes
Easy and jolt-free raising and lowering of rotary evaporator
Adjustable final position recognition to protect operator and sample against breaking
Evaporating flask with an ejector is very convenient to remove
It is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in research and production of medicine, chemical and biological products etc.
