EziLab Rotary Evaporator EZL-RE27 performs large-volume evaporation with a 50L rotating bottle and 20L collecting bottle for laboratory distillation workflows across pharmaceutical, chemical, and biological production environments. Rotation speed runs from 0–110 rpm for stable operation at higher loads, while bath temperature range reaches 0–400°C with 1°C variation for demanding applications. Achievable vacuum reaches 0.098 MPa for reduced-pressure solvent removal, and heating power is 8 kW for sustained bath heating. Manual elevating provides 180 mm stroke for flask positioning, and double PTFE sealing helps maintain vacuum stability during long processing cycles. Suited to evaporation, concentration, crystallization, separation, and solvent recovery in pharmaceutical, chemical, and biological production units via Lab Equipment and EziLab's full range of laboratory evaporators for lab workflow integration.
| Rotary Bottle | 50 L |
|---|---|
| Collecting Bottle | 20 L |
| Rotary Speed | 0 to 110 rpm |
| Evaporating Speed | 60 ml/min |
| Achievable Vacuum | 0.098 Mpa |
| Bath Size | 550×320 mm |
| Bottom Plate Size | 804×574 mm |
| Elevating Stroke | 180 mm |
| Temperature Range | 0 to 400°C |
| Temperature Accuracy | ±1°C |
| Display | Digital display |
| Speed Regulation | Electronic step less speed regulation |
| Elevating function | Manual elevating |
| Sealing | Double sealing with Teflon (PTFE) |
| Rotary Motor Power | 120 W |
| Heating Power | 8 Kw |
| Power Supply | 380V, 50Hz |
| Dimension (L×W×H) | 1520×620×2470 mm |
| Gross Weight | 179 Kg |
Double sealing with Teflon and Fluorous rubber to ensure high vacuum degree
Single handed manual lift offers precise positioning of glassware
Borosilicate glass, which is resistant to high temperatures and corrosion
Continuous feeding is convenient for users
Vacuum pressure gauge displays real time vacuum degree

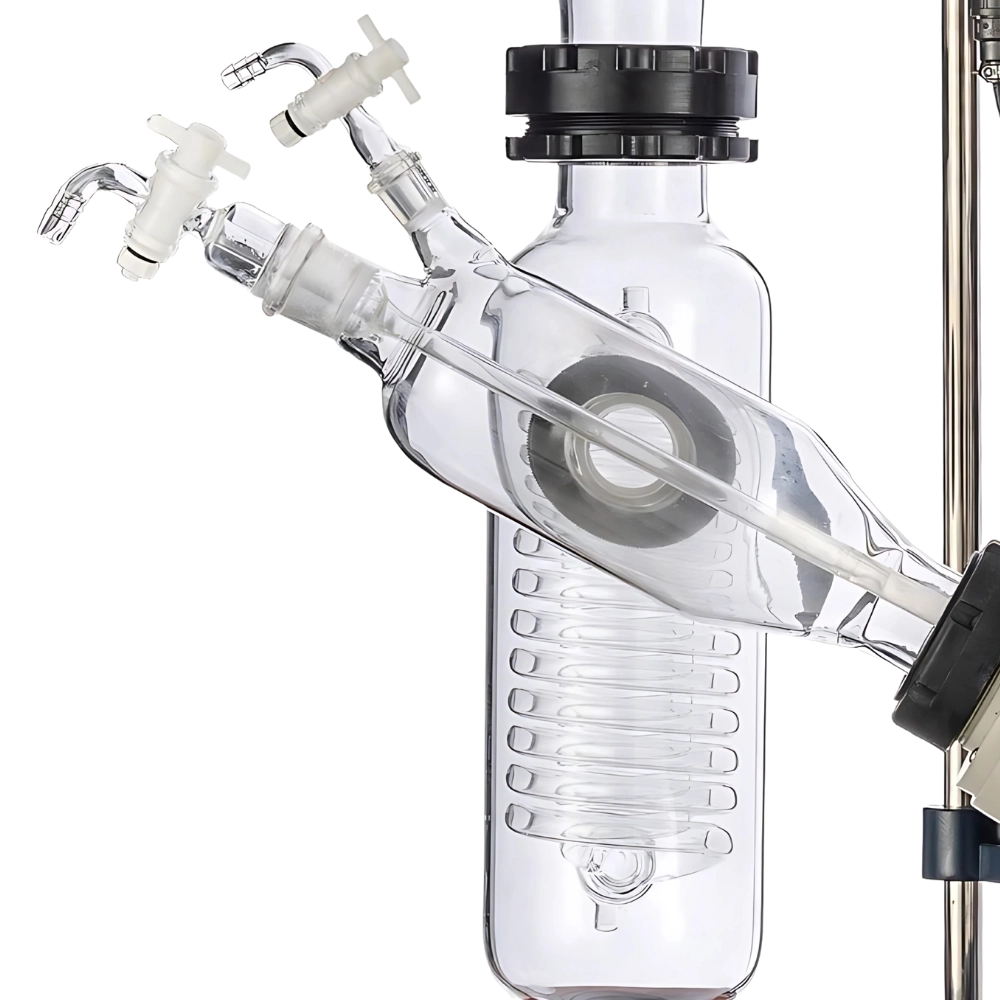

Up-right double layer serpentine coil condenser to ensure high recovery rate
Stainless steel and aluminum alloy main body bracket
Easy and smooth operation of lifting and moving
Separation of bath and mainframe makes configuration flexible
High rated condenser with exceptional cooling properties
Heats up quickly because of optimized bath volumes
Easy and jolt-free raising and lowering of rotary evaporator
Adjustable final position recognition to protect operator and sample against breaking
It is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in research and production of medicine, chemical and biological products etc.
